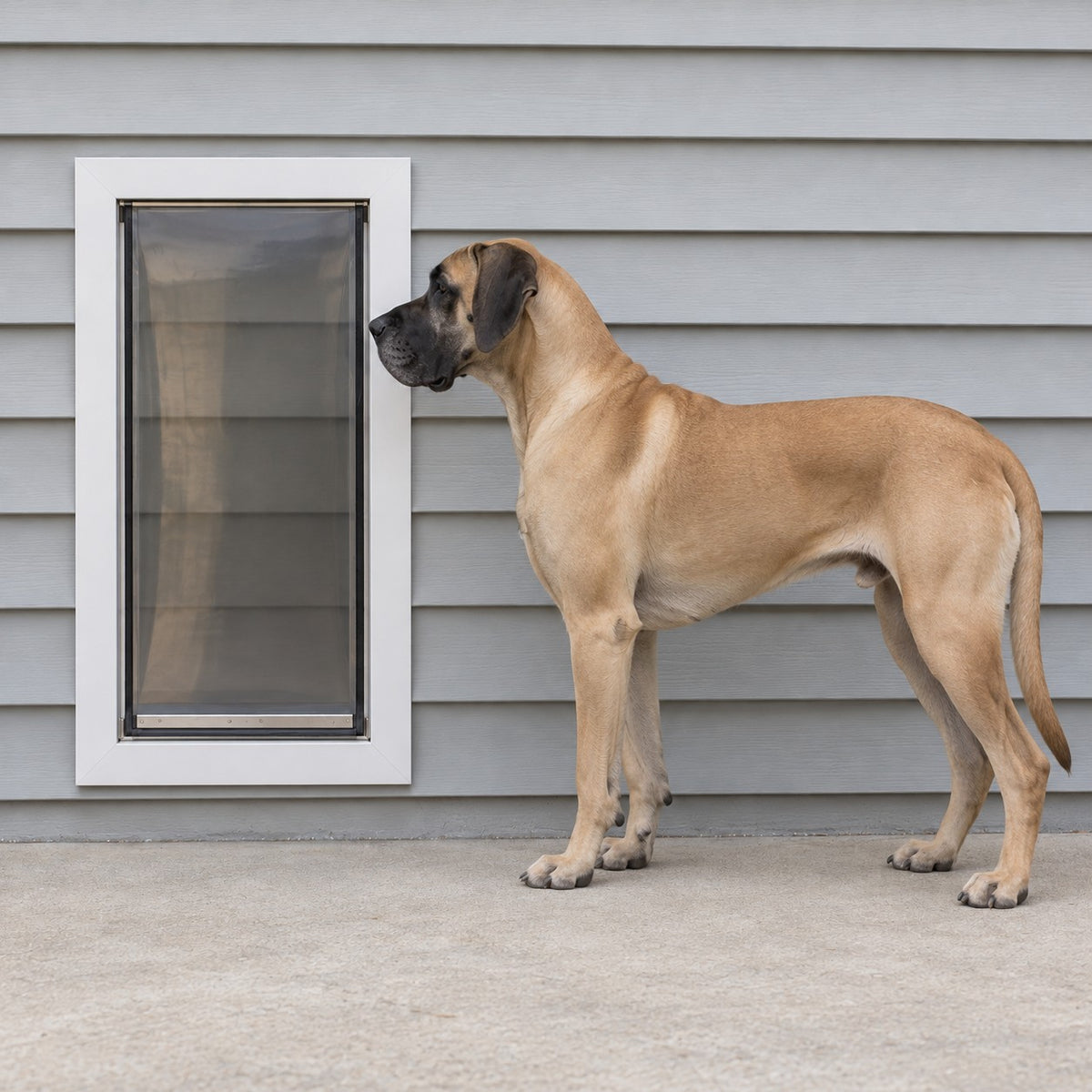

Illustration: Great Dane, 30 in at the shoulder, next to the Giant wall dog door

1 / 6
Illustration: Great Dane, 30 in at the shoulder, next to the Giant wall dog door
Illustration: Great Dane, 30 in at the shoulder, next to the Giant wall dog door
Illustration: German Shepherd next to the wall dog door in a brick wall
Illustration: German Shepherd next to the wall dog door in a brick wall
Illustration: Labrador walking through the wall dog door in a stucco wall
Illustration: Labrador walking through the wall dog door in a stucco wall
Illustration: the wall dog door seen from outside, white aluminum frame in vinyl siding
Illustration: the wall dog door seen from outside, white aluminum frame in vinyl siding
Illustration: inside view, security cover slid halfway down over the flap
Illustration: inside view, security cover slid halfway down over the flap
Illustration: double flap with weatherstripping and magnetic strip
Illustration: double flap with weatherstripping and magnetic strip
Hale wall door · Made in the USA

Giant Wall Dog Door

Most giant breeds, 25 to 31 in at the shoulder.

$853.00 Free shipping · Ships from the factory
Size
Opening 15 1/2 x 27 1/2 in · 25–31 in at shoulder
Flap: Double flap
Frame color: White
Wall: Standard wall

Wall over 10 in thick? Thicker walls are a special order. Text us before ordering. +1 646-258-9583

Orders open shortly. Text us to be told the day it opens. +1 646-258-9583

Giant Wall Dog Door · Double flap · White · Standard wall
  • Free shipping to the 48 contiguous states. Ships from the factory.
  • Lifetime frame warranty and 10 years on parts, from the manufacturer.
  • Questions before you order? Text us a photo of your dog and wall.
Why a wall door

A door in the wall leaves your house doors, glass and security untouched. Your dog gets a permanent way out to the yard, and you stop getting up to open the door.

Aluminum frame. Will not yellow or warp the way plastic doors do.

Clear flaps held by magnets. The double flap keeps wind, rain and bugs outside.

Security cover. Slide it in to lock the opening at night or when you travel.

Specifications
Passage opening
15 1/2 x 27 1/2 in
Cut-out size
17 5/8 x 29 5/8 in
Fits dogs
25–31 in shoulder · 12–14 in wide
Wall thickness
Up to 10 in. Thicker walls are a special order
Frame
Aluminum, color of your choice
Flaps
Clear vinyl, magnetic, weatherstripped
Made by
Hale Pet Door, USA
Installation

Through-the-wall install: cut the opening, trim the aluminum tunnel to your wall, screw the frames together and seal. Plan an afternoon in a framed wall.

Full installation guide

Shipping and returns

Free shipping to the 48 contiguous states. Alaska, Hawaii and US territories are not served yet.

Choose your size

Two measurements with a tape measure, dog standing.

Floor to the top of the shoulder blades, not the head.
in
Across the chest at its widest point. Press the fur down.
in
Enter both measurements to see your size.

More than one dog? Measure the tallest and the widest. Puppy? Use the adult size. Sizes follow the manufacturer's size chart.
Overview

Six questions to ask any wall door

Most wall doors look alike in photos. These are the details that decide whether you install it once or twice.

Frame What is it made of? Aluminum. It will not yellow, crack or warp the way plastic frames do.
Wall How thick a wall does it cover? The standard door fits walls up to 10 in thick. Thicker walls, up to 16 in, are a special order: text us before ordering.
Weather How does the flap seal? Clear vinyl flaps lined with weatherstripping and held shut by magnets. Double flap for cold, wind and rain.
Security Can you lock it? Yes. A polycarbonate security cover slides in and locks with a steel pin.
Warranty How long, and from whom? Lifetime on the frame and 10 years on parts, from the manufacturer.
Origin Who makes it? Hale Pet Door, in the USA, since 1985.
In the box
  • Inner frame with tunnel
  • Outer frame
  • Flashing
  • Security cover
  • Tunnel carpet
  • Screws and drill bit
  • Raincap (optional)
Per the manufacturer's wall model instructions.
Size chart

Two measurements decide the size

Hale makes 11 sizes. Measure your dog, then pick the smallest opening that covers both numbers. Tap a size to open it.

A top of shoulder blades
A · Shoulder height
B
B · Chest width
Opening width Opening height Step-over magnetic strip at the bottom of each flap
The door
Shoulder height (A) Dog standing on all fours. Floor to the top of the shoulder blades, not the head.
Chest width (B) Across the chest at its widest point. Press the fur down.
Flap height The top of the opening should sit 1 to 2 in above your dog's back.
Step-over Standard is 2 in above the floor. Go lower for senior dogs and short legs.
Several dogs Measure the tallest and the widest. One door can serve both.
Puppy Choose the size your dog will be as an adult.
When in doubt Go one size larger. Your dog should never have to crawl or stoop.
Wide, low breeds Bulldogs and similar builds often need a custom size. Text us before you order.
Small Medium$289 6 1/2 x 9 1/2 in · A 9–13 · B up to 4 Cats and small pets up to 10 lb Small Medium 6 1/2 x 9 1/2 8 1/2 x 11 1/2 9–13 up to 4 Cats and small pets up to 10 lb $289 Medium$362 8 1/2 x 12 1/2 in · A 12–15 · B 6–8 Dogs 10 to 35 lb Medium 8 1/2 x 12 1/2 10 1/2 x 14 1/2 12–15 6–8 Dogs 10 to 35 lb $362 Tall Medium$476 8 1/2 x 16 in · A 15–20 · B 6–8 Tall dogs, 30 to 45 lb Tall Medium 8 1/2 x 16 10 1/2 x 18 15–20 6–8 Tall dogs, 30 to 45 lb $476 Large$463 11 x 16 in · A 15–20 · B 8–10 Dogs 40 to 55 lb Large 11 x 16 13 x 18 15–20 8–10 Dogs 40 to 55 lb $463 Tall Large$617 11 x 19 1/2 in · A 21–24 · B 8–10 Taller dogs, 50 to 95 lb Tall Large 11 x 19 1/2 13 x 21 5/8 21–24 8–10 Taller dogs, 50 to 95 lb $617 Extra Large$653 14 x 19 1/2 in · A 22–24 · B 11–13 Large dogs up to 120 lb Extra Large 14 x 19 1/2 16 x 21 5/8 22–24 11–13 Large dogs up to 120 lb $653 Extra Large Plus$763 14 x 23 1/2 in · A 25–27 · B 11–13 Larger dogs up to 150 lb Extra Large Plus 14 x 23 1/2 16 x 25 5/8 25–27 11–13 Larger dogs up to 150 lb $763 Giant$853 15 1/2 x 27 1/2 in · A 25–31 · B 12–14 Most giant breeds Giant 15 1/2 x 27 1/2 17 5/8 x 29 5/8 25–31 12–14 Most giant breeds $853
Inches. Sizes and dog ranges follow the manufacturer's size chart. A = shoulder height, B = chest width. Cut-out = rough opening from the manufacturer's wall model instructions.
Between two sizes?

Text us a photo of your dog standing next to a tape measure. Claire replies with the size before you order.

Text +1 646-258-9583
Your wall

Will it fit your wall?

It goes through most exterior walls, including masonry. Thicknesses below are typical: measure yours.

Wood frame with siding About 4 1/2 to 7 in Standard tunnel Drywall saw inside, jigsaw or reciprocating saw outside.
Stucco About 5 to 8 in over a frame Standard tunnel Score the stucco with a diamond blade before cutting, to keep the edges clean.
Brick About 9 to 11 in for brick over a frame Often a special order Angle grinder with a diamond blade and a hammer drill. Many owners hire a mason.
Concrete block About 8 in of block, plus finishes Standard, or special order if thicker than 10 in Diamond blade, hammer drill and a cold chisel. Plan a full day.
Interior wall About 4 1/2 in Standard tunnel Garage, sunroom or mudroom. A single flap is often enough indoors.
Swipe for more wall types
Measure your wallAt a door or window frame on the same wall, measure from the inside face to the outside face. Up to 10 in: standard door. Over 10 in: special order, text us before ordering.
Your size and the studs Giant Wall Dog Door: the cut-out is 17.625 in wide, wider than the space between studs set 16 in apart, so one stud has to be cut. On a load-bearing wall, have a contractor do it.
Before you cutFind the studs, check both sides for wires and pipes, then drill a small test hole and look before you cut.
Installation

Installed once, in an afternoon

A summary to plan the job. The manufacturer's full instructions come in the box.

  1. 1
    Choose the spot Between two studs if you can, with room above for the security cover. Check both sides for wires and pipes.
  2. 2
    Mark the inside Draw a square, level outline of the cut-out. The top must clear your tallest dog's shoulder.
  3. 3
    Test, then cut Drill a small test hole and check for obstructions, then cut the inside wall with a drywall saw.
  4. 4
    Drill the corners From inside, drill through the wall at each corner. Masonry bit for brick or stucco.
  5. 5
    Cut the outside Connect the corner holes outside and cut with a reciprocating or circular saw.
  6. 6
    Trim the tunnel Fit the inner frame, trace the outside wall on the tunnel, then cut it to depth with tin snips.
  7. 7
    Flashing and frames Caulk the flashing into the bottom of the opening, fit both frames and screw them through the tunnel.
  8. 8
    Seal and finish Caulk the outer frame on top and sides only, so the bottom drains. Glue in the carpet, slide in the cover.
Tools
  • Tape measure, 24 in level, pencil, masking tape
  • Stud finder
  • Drill, 7/64 in bit (included), 5/16 in masonry bit
  • Drywall saw
  • Reciprocating or circular saw, wood or masonry blade
  • Tin snips
  • Latex caulk and caulk gun
  • Construction adhesive, drop cloths
Plan an afternoon in a framed wall. Brick, block and thick stucco take longer.
The one tricky step: the tunnel Owners say cutting the aluminum tunnel is the hardest part. Fit the inner frame, trace the outside wall line on the tunnel, take it out and cut with sharp tin snips, wearing gloves. Cut slightly long, test, then trim.
Hiring a handyman? Send them this page: cut-out size, wall thickness, tools and steps are all here. The manufacturer's full instructions come in the box.Questions from your installer: +1 646-258-9583
Care and warranty

Training, care and warranty

Teach your dog in three steps

  1. 1 Tape the flaps openFirst days: tape both flaps up so your dog sees straight through.
  2. 2 Call from the other sideOne person on each side, a treat at the opening. Short sessions.
  3. 3 Lower one flap, then bothLet your dog push one flap, then the second. Keep sessions short and end on a success.

Care

Cleaning Clean the flaps with an ammonia-free window cleaner, the frame with a damp cloth.
Magnets The flaps close with magnets and weatherstripping. Replacement flaps are available if one ever wears out.
Security panel Slide the polycarbonate cover in at night and when you travel. It locks with a steel pin.
Warranty Lifetime on the frame, 10 years on parts, from the manufacturer. We help you file the claim.
Reviews

Reviews

Verified Houndgate reviews with photos of installed doors will appear here.
FAQ

Questions owners ask before ordering

Will cold air come through?

Each flap is lined with weatherstripping and held shut by magnets. In cold or windy places, choose the double flap.

Can I install it in brick or stucco?

Yes. The standard door covers walls up to 10 in thick. Thicker walls, up to 16 in, are a special order. Masonry needs a diamond blade and more time.

Is this the same door Hale sells?

Yes. It is made by Hale Pet Door in the USA and ships to you from their factory, in Hale packaging. We help you choose the size and handle any issue.

I have two dogs of different sizes.

Measure the tallest dog's shoulder height and the widest dog's chest. The size chart then gives one door for both.

Can the inside and outside frames be different colors?

Yes, the manufacturer offers it. Text us the inside and outside colors you want before you order.

What if I order the wrong size?

Text us your dog's measurements before ordering and we confirm the size with you. Every order is checked before it goes to the factory.

Do you install it?

No. Most owners install it themselves; others hire a handyman and send them this page.

How long until it arrives?

Every door ships direct from the factory, free to the 48 contiguous states. Text us and we give you the current lead time before you order.

Another question? Text +1 646-258-9583 or email support@houndgate.com.
